Product Description

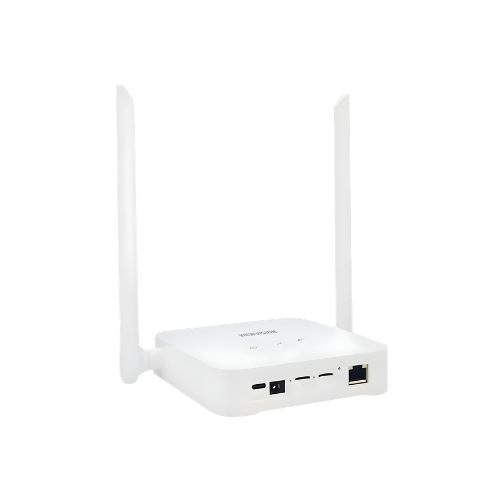

Viewvision AT‑5TD14‑4G is a High Performance Wi‑Fi Router. It Supports Wi‑Fi 6 Router and Offers maximum
Downlink rate 150Mbps and a maximum Uplink rate of 50Mbps for LTE. It Supports Dual SIM Cards.
Model
AT-5TD14-4G
Specification
- 1*10/100Mbps Rj45
- Dual SIM Single Standby Function
- Power by DC12V or Type C 5V
- Support 3G/4G Switching
- Support Frequency banning
- Support APN
- Support Wi‑Fi 6 (2.4GHz)
| Frequency Band Information | |
|---|---|
| FDD-LTE | B1 / B3 / B5 / B8 |
| TDD-LTE | B34 / B38 / B39 / B40 / B41 |
| WCDMA | B1 / B5 / B8 |
| Transmission Rate | |
| FDD-LTE (Mbps) | Downlink: 150; Uplink: 50 |
| TDD-LTE (Mbps) | Downlink: 150; Uplink: 30 |
| WCDMA (Kbps) | Downlink: 384; Uplink: 384 |
| Wi-Fi | |
| Protocol Standard | IEEE 802.11b/g/n/ax |
| Bandwidth | 20MHz, 40MHz |
| Frequency | 2.4G |
| Speed |
802.11b: 11Mbps 802.11g: 54Mbps 802.11n: 150Mbps 802.11ax: 300Mbps |
| Temperature Range | |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Ports | |
| SIM | nano x2 |
| Port | 100Mbps x1 |
| Type C | x1 |
| DC | x1 |
| Features | |
| Network Mode | 3G, 4G, 3G&4G |
| Dual SIM Card | Dual sim card, single standby, support auto/manual switching power |
| Power | |
| Power Supply | Type C 5V2A / DC 12V1A |
| Product | Size: 118 * 119 * 177mm |
| Weight: 0.15kg | |
| Accessories List | |
| Power | Type C x1 |
