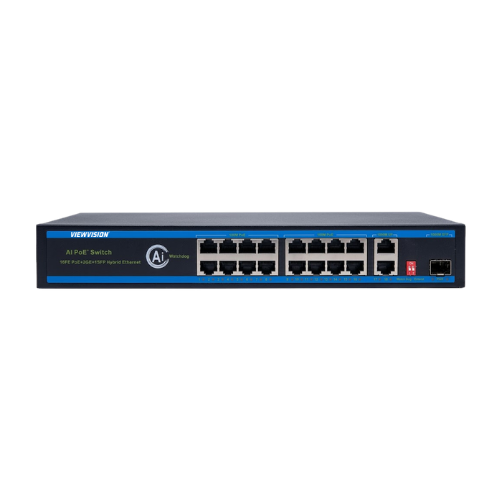

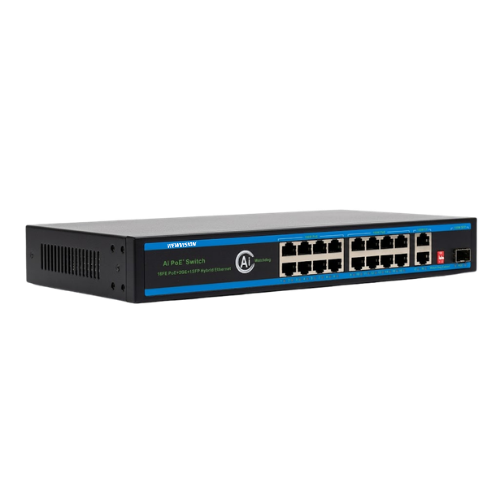

A High ‑ Performance PoE Switch delivering up to
250W total Power with IEEE 802.3af/at,extended
250m transmission, and AI Self Healing Watchdog
for Stable, Fanless and Built for Silent reliability
Model
ND-AP1621GE
Specification
- 16*10/100Mbps PoE Ports, 2*10/100/1000Mbps uplink Port,1*1000Mbps SFP Slot
- Support IEEE 802.3af/at
- Support Restrain Network Storm, VLAN Function
- Support Max Transmission up to 250m with PoE Power
- All Ports Supported by MDI/MDIX Auto Flip and Self Negotitation
- In‑Built Power Supply
- Maximum Power of Single PoE Port꞉ 30W
- Maximum PoE Power꞉ 250W
- Adopts Store‑and Forward Architecture
- Fanless, Natural Cooling, Small, Compact and Quiet Design Suitable For Desktop or Wall
- Support AI Self ‑ healing mode (Watchdog Function)
- The Toggle Horse Can be Switched at will without Power
| MODEL | ND-AP1621GE |
| Fixed port | 16*10/100 Base-TX PoE ports (Data/Power) 2*10/100/1000Base-TX uplink RJ45 port (Data) 1*1000Mbps SFP Slot |
| Ethernet Port | Port 1-16 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Network Protocol | IEEE802.3 10BASE‑T; IEEE802.3i 10Base‑T; IEEE802.3u 100Base‑TX; IEEE802.3ab 1000Base‑T; IEEE802.3z 1000Base‑X; IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 9.2Gbps |
| Forwarding rate@64byte | 6.8448mpps |
| MAC | 8K |
| Buffer Memory | 4M |
| Twisted Pair Transmission | 10BASE‑T Cat3,4,5 UTP(≤250 meter 100BASE‑TX Cat5 or later UTP(≤100 meter) |
| PoE Port | Port 1 to 16 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2 (+), 3/6 (‑), optional 4/5(+),7/8(‑) |
| Single Port Max Power | 30W, IEEE802.3af/at |
| Total PWR / Input Voltage | 250/300W(52VDC) |
| Power Supply | External power adapter,AC100~240V 50‑60Hz 1A |
| Operation TEMP/Humidity | ‑20°C+55°C, 5%~90% RH Non condensing |
| Power Consumption | Standby<4W, Full load<300W |
| Storage TEMP/Humidity | ‑40°C+75°C, 5%~95% RH Non condensing |
| Dimension (W×L×H) | 310mm*183mm*45mm |
| Weight | 2.06kg |
| Installation | Desktop Wall Mounted |
