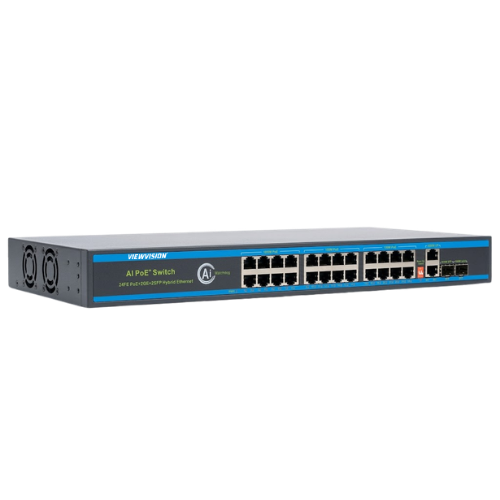

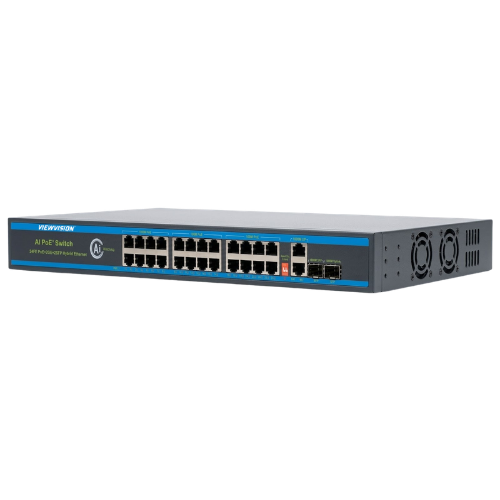

This 24‑Port PoE Switch delivers powerful
Stable, and intelligent networking for Surveillance
Applications. It Ensures Seamless Data Transmission
and Flexible Network Expansion.
Model
ND-AP2422G
Specification
- 24*10/100Mbps PoE Ports, 2*10/100/1000Mbps uplink Port,2*1000Mbps SFP Slot
- Support IEEE 802.3af/at
- Support Restrain Network Storm, VLAN Function
- All Ports Supported by MDI/MDIX Auto Flip and Self Negotitation
- In‑Built Power Supply
- Maximum Power of Single PoE Port꞉ 30W
- Maximum PoE Power꞉ 300W
- Adopts Store‑and Forward Architecture
- Fanless, Natural Cooling, Small, Compact and Quiet Design Suitable For Desktop or Wall
- Support AI Self ‑ healing mode (Watchdog Function)
- The toggle horse can be switched at will without Power
| MODEL | ND-APG2422 |
| Fixed port | 24×10/100 Base-TX PoE ports (Data/Power), 2×10/100/1000Base-TX uplink RJ45 port (Data), 2×1000Mbps SFP Slot |
| Ethernet Port | 1(1,2) two-position dip switch, the default state “OFF”, “ON” 1 is the “ON” state, port 1-24 can support AI self-healing (mode watchdog function); when”OFF”, no communication 2 is the “ON” state, port 1-16 can support long-distance transmission 10M/250m+VLAN transmission |
| Function Switch | 2-position DIP switch (Default OFF). ON (1): AI watchdog self-healing for ports 1–24. ON (2): Long-distance transmission (10M / 250m + VLAN). |
| Network Protocol | IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 12.8Gbps |
| Forwarding rate@64byte | 9.5232 mpps |
| MAC | 8K |
| Buffer Memory | 4M |
| Twisted Pair Transmission | 10BASE-T: Cat3/4/5 UTP (≤250m) 100BASE-TX: Cat5 or later UTP (≤100m) |
| PoE Port | Port 1–24 IEEE802.3af/at |
| Power Supply Pin | 1/2/3/6 (+), 4/5/7/8 (-), 8-core power supply |
| Single Port Max Power | 30W (IEEE802.3af/at) |
| Total PWR / Input Voltage | 300W (52VDC) |
| Power Supply | AC 100–240V, 50–60Hz, 1A |
| Operation TEMP/Humidity | -20°C to +55°C, 5%–90% RH |
| Power Consumption | Standby <4W, Full load <300W |
| Storage TEMP/Humidity | -40°C to +75°C, 5%–95% RH |
| Dimension (W×L×H) | 440 × 192 × 45 mm |
| Weight | 2.35 kg |
| Installation | Desktop / Wall Mounted |
