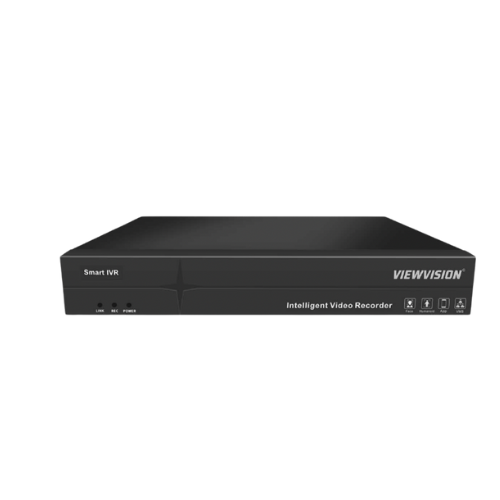

10CH NVR with up to 8MP Input, 4CH 1080P Playback 4k Output Support Remote/Mobile View, Smart IPC Analytics ONVIF/RTSP/RTMP, ANR and Fast Boot and Intelligent Bandwidth Optimization.
Model
AT-2GO7N08U-S1 (4K)
Specification
- Support 10CH IPC input(8MP/D1+10CH Preview+4CH Playback}
- Support Smart265, H265, H264 decoding format
- Support synchronized recording, remote view, backup recording in MP4 format, mobile view
- Support VGA/HDMI output
- Support preview image and playback image electronic amplification
- Support standard ONVIF, RTSP, GB28181 protocol
- Support alarm capture, alarm email sending function
- Support RTMP
- Support DDNS?UPNP ... etc
- Support WEB, mobile view, IMS surveillance
- Support IPC smart analysis: Line-crossing detection, Vehicle retrograde, Staff absence, Loitering, Area intrusion, Vehicle illegal parking
- Support channel cruise grouping
- Support network inspection: network traffic monitoring, network diagnosis... etc
- Support maximum 4CH 1080P synchronous playback
- Support fast booting
- New Ul interface, smooth operation
- Support 10CH 4K decoding and 4K display output
- Support to upgrade IPC on line and by U disk
- Support to add IPC manually or automatically in LAN
- Support to maintain IPC under private protocol, including restore, restart, enable or disable all netcom function
- New optimization, high quality compatibility with hard disk on the market
- Support ANR (Automatic Network Replenishment} function
- Support select the video stream mode
- Optimize incoming bandwidth up to 80M
| System Structure | Embedded LINUX design, pure hard decoding, watchdog, hard c storage, HDMI HD display, IP network video access | ||||||||||||
| Video Mode | |||||||||||||
| |||||||||||||
| Incoming Bandwidth | 150Mbps;, | ||||||||||||
| Video Output | 1 HDMI output, I VGA output; Resolution: 3840×216() J.920×1080, 1440×900,1280×1024,1280×800,1024×768 Support IMS client preview; Support Mobile APP fast preview Support multi-screen split; 1/2/4/6/8/9/10/16screen real-time preview | ||||||||||||
| Recording Resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K | ||||||||||||
| Video Decoding Parameter | NVR synchronous playback 4CH (1 *4K); IMS client support maximum 4CH remote video playback | ||||||||||||
| Audio | Standard G.711; Support HDMI audio output, audio output (3.5mm jack audio input (3.5mm jack), and IMS clienaudio and video preview and playback 1 SATA, maximum support 16TB hard disk | ||||||||||||
| Storage Management | Support timing recording alarm recording timing and alarm recording Alarm recording includes (Motion detection, Human detection, Line-crossing detection, Vehicle retro grade, Staff absence, Loitering, Are intrusion, Vehicle illegal parking) | ||||||||||||
| User Management | Maximum support 32 local user | ||||||||||||
| Network Port | 1RJ45 Ethernet port, 10/100/1000M adaptive; Support TCP/IP, IPv DHCP, NTP, RTSP, ONVIF, P2P, SMTP, Gb2818ikt. Network protocol | ||||||||||||
| External Port | 2 USB2.0 (rear); Support mouse/USB upgrade, import and export | ||||||||||||
| Alarm Port | / | ||||||||||||
| Front panel | Support power, Recording network transmission 3 status indicator | ||||||||||||
| Buzzer | Support Buzzer Alarm | ||||||||||||
| Service Function | Support preview, recording forwarding, and remote service, alar linkage, and IMS client remote monitoring software. Support P2P service | ||||||||||||
| Working Temperature | -10°C+55°C | ||||||||||||
| Working Humidity | 10% – 90% | ||||||||||||
| Power | DC+12V/2A | ||||||||||||
| Power Consumption | <2W (not with hard disk) | ||||||||||||
| Size (mm) | 210*255*42mm(WxLxH) | ||||||||||||
