Product Description

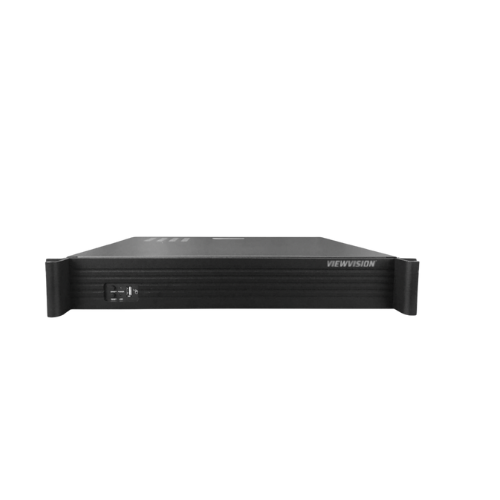

64CH NVR Powerful Performance, It Offers
Remote and Mobile Viewing, Smart Video analytics,
HDMI/VGA output. It Supports ONVIF, RTSP
For Seamless Integration.
Model
AT-2GO7E64U
Specification
- Support 64CH IPC input(8MP/D1+64CH Preview+16CH Playback)
- Support H264, H265, H265+ Compression format
- Support synchronized recording, remote view, backup recording in MP4 format, mobile view
- Support VGA/HDMI
- Support preview image and playback image electronic amplification
- Support standard ONVIF, RTSP, GB28181 protocol
- Support alarm capture, send alarm information by email
- Support HTTP, RTMP
- Support DDNS, UPNP, NTP, P2P... etc
- Support WEB, mobile view, IMS surveillance
- Support IPC Smart analysis: area intrusion, loitering, line-crossing detection, illegal vehicle detection, absence detection, retrograde detection
- Support network insepection-network traffic monitor, ether-detect packet, network diagnosis...etc.
- Support maximum 4CH 1080P playback and 16CH sub-code playback
- Support HTML5 remote login operation
- Support to Upgrade IPC online and by memory
- Support to Add IPC manually or automatically in LAN
- Support to maintain IPC under private protocol, including restore, restart, enable or disable all netcom function
- Support disconnected network supplement function, optimize bandwidth incoming up to 380M
- Support 36 Channels IPC input (8MP/D1+36 CH Preview+16CH Playback)
- Support 64 split screens
| Channel Connection protocol | RTSP, SLINK (Private Protocol) ONVIF 19 | ||||||||||||||||||
| Mobile APP | Support Android and IOS | ||||||||||||||||||
| Display Mode | 64CH Input (8MP/D1+64CH Preview+16CH Playback) | ||||||||||||||||||
| Smart Analysis | Area Intrusion, Loitering, Linecrossing Detection, illegal vehicle detection, absence detection, retrograde detection | ||||||||||||||||||
| Normal Mode | 64CH normal IPC | ||||||||||||||||||
|
|||||||||||||||||||
| Bandwidth | 380Mbps | ||||||||||||||||||
| Video Compression | 4K/1080P/720P/D1 | ||||||||||||||||||
| Recording Resolution | Support 720P/960P/1080P/3MP/4MP/5MP/4K | ||||||||||||||||||
| Audio Compression | G.711A/U | ||||||||||||||||||
| Recording and playback | |||||||||||||||||||
| Recording method | Manual, schedule, motion detection, timing, alarm, stop | ||||||||||||||||||
| Playback | 1CH 4K, 4CH 1080P, 16CH D1 | ||||||||||||||||||
| Playback Mode | Regular playback, event playback | ||||||||||||||||||
| Storage and Backup | |||||||||||||||||||
| Storage | 4 PCS SATА | ||||||||||||||||||
| HDD capacity | Max 16ТВ | ||||||||||||||||||
| Storage Path | Local hard disk | ||||||||||||||||||
| Backup method | USB portable HDD, Memory Flash | ||||||||||||||||||
| External Port | |||||||||||||||||||
| Audio Input | 1pcs 3.5mm TRS port | ||||||||||||||||||
| Audio Output | 1pcs 3.5mm TRS Port | ||||||||||||||||||
| Series Port | 1pcs Rs5485 port | ||||||||||||||||||
| USB Port | 3 Pcs USB 2.0 | ||||||||||||||||||
| Network Port | 2 Pcs Rj 45 1000M port | ||||||||||||||||||
| VGA | 1 pcs | ||||||||||||||||||
| HDMI | 1 pcs | ||||||||||||||||||
| Backup Mode | USB device / network | ||||||||||||||||||
| Video Input | Support to connect 36 CH IPC (8MP/D1+36CH preview+ 16 playback) | ||||||||||||||||||
